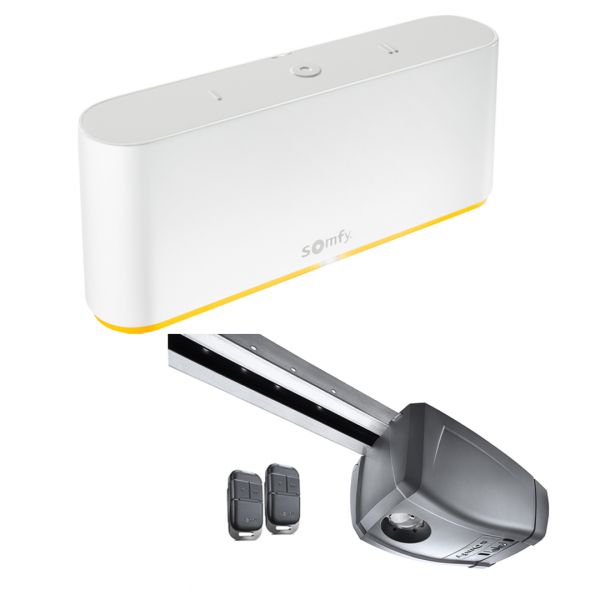

The TaHoma Switch is the first smart control to centralise & connect your home equipment.
Simple & evolutive: Start with one or two pieces of equipment and add new equipment at your own pace.
Compatable with many smart home devices: Large ecosystem of Somfy products and partnerships with major home equipment brands.
Supports key smart home protocols: Native integration of io-homecontrol, RTS and Zigbee 3.0 protocols along with cloud compatibilities.

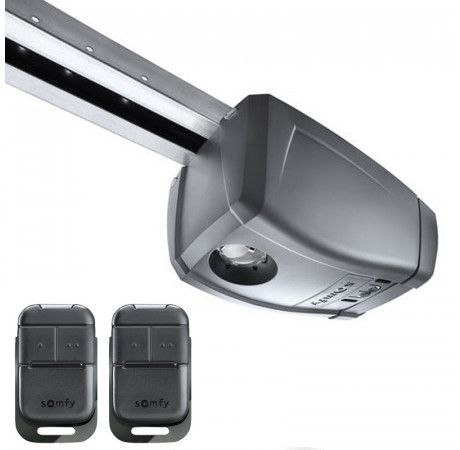

The Somfy GDK 700 is a silent garage door opener with burglar protection and obstacle detection. This easy to install device is suitable for sectional and tilt opening doors.
Package contents:
1 pc Somfy TaHoma box
1 pc Power cable, Micro-USB
1 Getting Started Manual
Specification for TaHoma Switch:
- Article number: 1870600
- Radio frequency: 868-870 MHz and 433.42 MHz
- Technology: io-homecontrol, RTS and Zigbee 3.0
- Connections: 1 x Micro-USB
- Current: 230 V / 5V DC 1 A
- Enclosure class: IP30
- Range: 200 meters open field
- Working temperature: 0 ° C to + 50 ° C
- Dimensions: 162 x 67.5 x 34 mm
- Weight: 213 g
- Color: White
- Location: Indoor
- Other: LED (red / green / orange / white).
- Miscellaneous: Two physical control buttons at the top of scenes.
Technical specifications Somfy GKD 700:
- Main supply: 230V - 50/60Hz
- Reduction gear supply: 24V DC
- Max. power consumed: 120 W
- Standby consumption: 4 W
- Traction force: 700 N
- Types of rails available: Belt transmission
- Lengths of rails available: 2,9m in 3 parts
- Use: 15 cycles per day for a standard rail (tested for 10 000 cycles)
- Min. height under the lintel: 35 mm
- Overall length: With a 2,9m rail: 3,29m (3,09m if the motor head is mounted with a 90° offset)
- Weight motor head: 4 Kg
- Weight rail: 9 kg
- Opening speed (in load): 14 cm/s max.
- Number of channels that can be memorised: 32

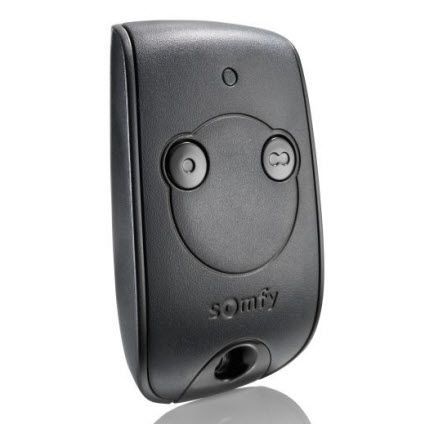

- Transmiter in the kit: Keytis 2 RTS
- Somfy radio frequency: 433,42 MHz RTS
- Built in lighting: G4 24V 20 W
- Operating temperature: -20° / +60°
- Warranty: 5 years
